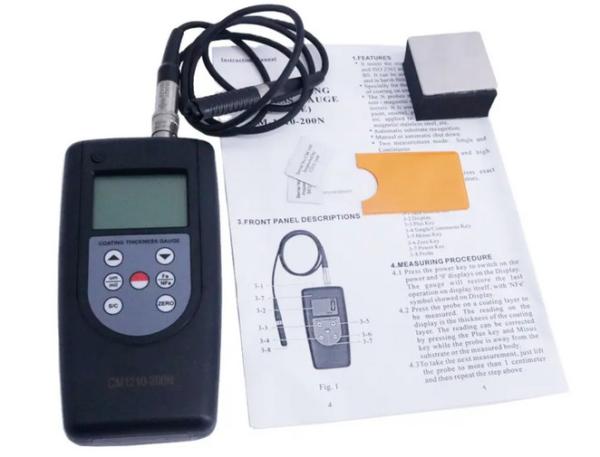

Coating Thickness Gauge CM-1210-200N for Non-Conductive Coatings on Non-magnetic Metals

  • 1
  • 2

Brand Name : iqualitrol

Model Number : CM-1210-200N

MOQ : 1 Set

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 10 Working Days

Packaging Details : Carton Box

Principle : NF Type Eddy Current

Range : 0 ~ 200 µm / 0 ~ 8 mil

Resolution : 0.1 µm / 1 µm

Functions : Battery Indicator & Automatic Power Off

Power Supply : 4 x 1.5V AAA (UM-4) Battery

Data : USB/RS-232 data output

Contact Now


Coating Thickness Gauge CM-1210-200N for Non-Conductive Coatings on Non-magnetic Metals

Working Principle:

Principles Applications Examples
F Type
Magnetic Induction
(Iron Base)		 Measure the thickness of non-magnetic materials on magnetic materials Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc
NF Type
Eddy Current
(Aluminium Base)		 Measure the thickness of non-conductive coatings on non-magnetic metals Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc


Technical Specifications:

Model CM-1210-200F CM-1210-200N
Principle F Magnetic Induction NF Type Eddy Current
Range 0 ~ 200 µm / 0 ~ 8 mil
Resolution 0.1 µm / 1 µm
Accuracy ±1 ~ 3%n or ±2.5 µm or 0.1 mil
Min.Radius Workpiece Convex 2 mm / Concave 4 mm
Min.Sample Thickness 0.1 mm
Metric / Imperial √
Functions Battery Indicator & Automatic Power Off
Opeating Conditions Temperature : 0 ~ 40°C
Humidity : 10 ~ 90% RH
Power Supply 4 x 1.5V AAA (UM-4) Battery
Dimensions 140 x 72 x 34 mm
Weight 215 g (Not Including Batteries)
Standard Accessories Main Unit
Probe ( F Type ) ----------
---------- Probe ( NF Type )
Calibration Base ( F ) ----------
---------- Calibration Base ( NF )
Calibreation Foils ( 1 set , 2 pieces )
Carrying Case ( B04 )
Operation Manual
Optional Accessories RS-232C Data Cable with Software
Bluetooth Data Adapter with Software

Brief Introduction:
The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.

Features:
Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)

Metric/imperial system selectable.
Manual or automatic shut down.

Automatic memory of calibration value,and automatic recognize the substrate.
Operation process have buzzing reminder,while no buzzing in continuous mode.

Use USB/RS-232 data output to connect with PC.
Provide Bluetooth data output choice.

Separate Type can provide several type probe, measure can be more flexibility.
