Wild Field Image 2D Dimension Vision Measuring
Machine with Powerful Software
Technical Data Download:
iqualitrol Instant Vision Measuring Machine KS-YJ60A
Brief Introduction:
The iVM Series image dimension measurement system is a completely innovative measuring instrument designed around simple Place and Press operation. The iVM Series allows anyone, regardless of expertise and skill level, to easily, quickly, and accurately perform hundreds of measurements in just seconds.
Optical comparators, measuring microscopes, and optical CMMs are popular as instruments that use images for measuring the dimensions of a target. These instruments capture an image of a target, identify the edges to be measured based on human vision (or automatic recognition), measure the movement of the XY stage, and obtain the dimensions of the target.
iVM Series obtain a profile of the whole part first, upon which measurements are carried out. This is possibly by our experience and expertise in high-performance optics. This allows an operator to simply place the part on the stage and hit measure to perform hundreds of measurements in seconds.
iVM series have advantages compare with conventional quality inspection instruments, it perform high precision measurements, automatically record data and generate report with the push of a button.
Features:
1, Image dimension measurement system features simple place and press operation, provides both incredible measurement speed and high measurement accuracy.
Simply please a target on the stage and press the measurement start button, then system executes measurement of a number of points in the captured image in only seconds.
Since optical comparators (profile projector) and measuring microscopes typically require manual or automatic XY stage movement, an increase in measurement points can quickly lengthen the time necessary for measurement. With the iVM Series image dimension measurement system, XY stage movement is unnecessary so that measurement can be completed within seconds even when there are many points to be measured.
2, No variation in measurement result among different operators
When target edges are identified based on human vision, it is impossible to eliminate variations and errors caused by individual differences or skill levels. With the iVM Series image dimension measurement system that detects edges automatically, the measurement result is stable and consistent regardless of operators.
3, The iVM Series obtain an image of the part using its unique wide-field, high-precision telecentric optical system. The telecentric optical system features constant image size regardless of height differences, large depth-of-field for sharp focus at various heights, and no image distortion despite part placement on stage.
The edges (boundaries between bright and dark areas) of the captured image are accurately detected using our sub-pixel processing (to 1/100th or less of a pixel) upon which defined measurements are performed in seconds.
Technical Specification:
| Model | iVM-30 | iVM-60 | iVM-80 |
| Video Sensor | 5MP CCD |
| Lens | wide-field, high-precision telecentric optical system |
| Field of View | 25x20mm | 80x60mm | 95x80mm |
| Accuracy | ±0.002mm | ±0.004mm | ±0.005mm |
| Repeatability | ±0.001mm | ±0.001mm | ±0.0015mm |
| Net Weight | 25Kg | 50Kg | 50Kg |

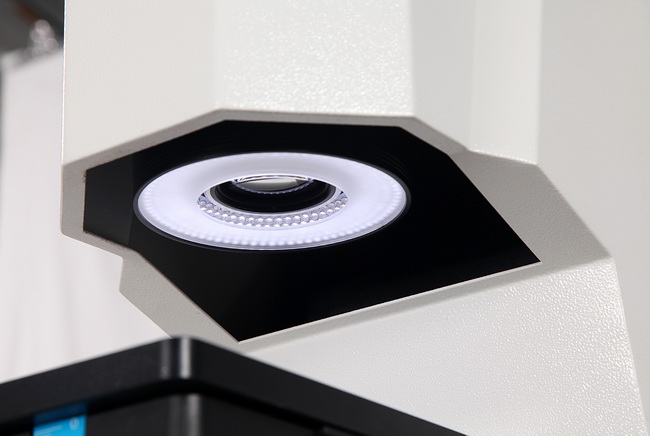

| Illumination | Parallel surface and contour light |
| Software | Inspectacle 1.0 |
| Computer | Intel I5, CPU 4G |
| Monitor | 21.5” LCD |
| Work Environment | 25℃±2℃, Humidity 20-80%RH |
| Measuring Time | Less than 5 seconds (within 100 measurements) |
| Software Function | Measure point, line, circle, arc, angle,
distance, etc the basic functions |
| Auxiliary Function | Line cross, parallel, perpendicular, tangency, etc. |
| Geometric Tolerance | Position tolerance, form and position tolerance,
dimensional tolerance |
