Stepless Speed 50-600rpm Double Disc Metallographic Grinding Polishing Machine

Name: Stepless Speed 50600rpm Double Disc Metallographic Grinding Polishing Machine
Brand: iqualitrol
Price: 1 USD

Stepless Speed 50-600rpm Double Disc Metallographic Grinding Polishing Machine Manufactures

Brand Name : iqualitrol

Model Number : GP-260E

MOQ : 1 Set

Payment Terms : T/T

Supply Ability : 50 Sets per Month

Delivery Time : 20 Working Days

Packaging Details : Plywood Box

Model : GP-260E

Diameter : 200mm (Opt. 250mm)

Speed : 50-600rpm

Rotate Direction : Clockwise/Anti-clockwise

Disc Qty : 2

Power : AC220V/50Hz/1Ph, 550W

Contact Now

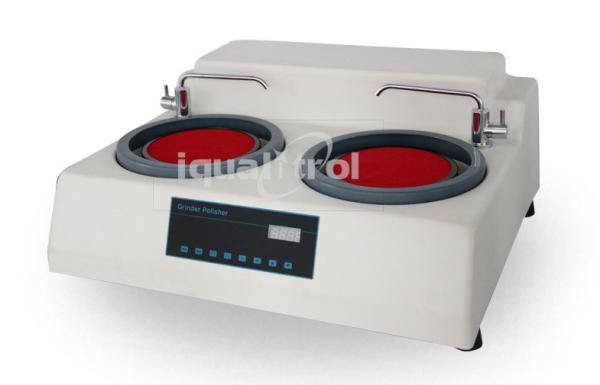

Stepless Speed 50-600rpm Double Disc Manual Metallographic Grinding and Polishing Machine

iqualitrol GP-260E has the features of:

Efficient and low-noise motor and control system. The machine runs quiet and smooth.
Working wheel for Final grinding and surface process can make the surface smooth.
FRP(Fiber Reinforced Plastics) cover, high strength and rust-proof.

iqualitrol GP-260E is applicable to rough grinding, fine grinding and polishing of metallographic samples, it has microprocessor control system, with a speed of 50-600rpm.

The machine is an indispensable equipment in making the metallographic sample, and has a cooling device to cool the sample during grinding and polishing, thus preventing the damage of the metallographic structure caused by overheat. It is easy to use, safe and reliable, an ideal preparation equipment for the labs of factories, research institutes and universities and colleges.

Technical Specifications:

Model	GP-260E
Disc Diameter	203mm (Opt. 250mm)
Rotation speed	50-600rpm
Rotate Direction	Clockwise/Anticlockwise
Power Supply	AC220V/50Hz/1Ph
Disc Quantity	2
Power Consumption	550W
Dimension	725x710x310mm
Net weight	50kg
