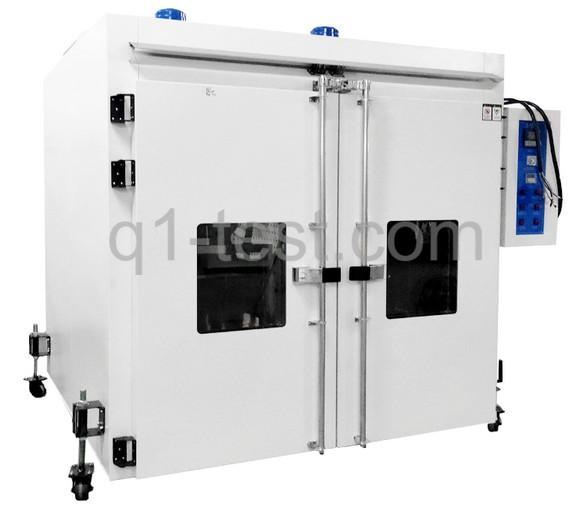

Customized OEM Large Walkin Hot Air Circulating Drying Industrial Oven Trolly Drying Oven
Main Application:
iqualitrol drying oven was used for a wide variety of heat processes including drying, curing, aging, annealing, stress relieving, bonding, tempering, pre-heating and forming.
Industrial ovens are essentially heated boxes with insulated doors that process products one at a time or in groups. The part(s) to be heated are brought into the oven in batches on racks, carts, or trucks. Production requirements can accommodate manual or automated loading.
Double layer door; Microcomputer intelligent temperature control, digital display; centrifugal wind wheel, heat flow evenly; large studio space, fast heating time; (can be equipped with explosion-proof locks, explosion doors)
Used for dehydration and drying of the product, suitable for industries, mining enterprises, workshop batch production can be a long time uninterrupted operation.
Widely used in electroplating industry, electronic industry, alloy jewelry drops of oil, food and plastic industry, leather industry and hardware industry, etc. is not suitable for flammable and explosive materials processing.
Technical Specifications:
| Model | Voltage
(V) | Temp
range (℃) | Accu-racy
(℃) | Fluct uation (%) | Power (KW) | Inner size(cm) (H*W*D) | Overall dimension (cm) (H*W*D) | Packing size (cm) (H*W*D) | Net weight (KG) |
| iKH-100C | AC380 | RT +5~250 (300) | ±0.5 | ±2 | 4~6 | 100×60 ×50 | 175×113 ×70 | 187×121 ×78 | 152 |
| iKH-100A | 4~6 | 100×60 ×50 | 175×113 ×70 | 187×121 ×78 | 152 |
| iKH-100AS | 4~6 | 100×60 ×50 | 175×113 ×70 | 187×121 ×78 | 152 |
| iKH-110C | 6~8 | 100×80 ×60 | 180×135 ×80 | 187×121 ×78 | 152 |
| iKH-120C | 8~12 | 120×90 ×80 | 200×145 ×100 | 212×153 ×108 | 214 |
| iKH-120A | 8~12 | 120×90 ×80 | 200×145 ×100 | 212×153 ×108 | 214 |
| iKH-120AS | 8~12 | 120×90 ×80 | 200×145 ×100 | 212×153 ×108 | 214 |
Brief Introduction:
●For dewatering, drying, producing industries such as electroplating industry, electronic industry, alloy jewelry drip, food and plastics industry, leather industry, hardware and other applications, but not for the strong volatile, flammable and explosive items in order to avoid explosion. (If the explosion-proof requirements, you must install safety facilities, such as explosion-proof lock and blast doors)
Features:
●According to the box size single door or double door design. Large diameter centrifugal wind wheel. Uniform heat circulation.
●The shell is made of high quality cold-rolled steel with metallic paint spray. Nice overall color design. suitable for all workshop production.
●Digital display intelligent temperature controller with microcomputer intelligent PID control and timing function.
●Large diameter centrifugal wind wheel. uniform heat circulation.
●Two types material inner chamber: mirror stainless steel and zinc-plating.
●This series product with the feature of large storage and temperature rising is fast.
●iKH-120 for the smaller product baking such as baked paint for toys hardware part.
